LEFFER

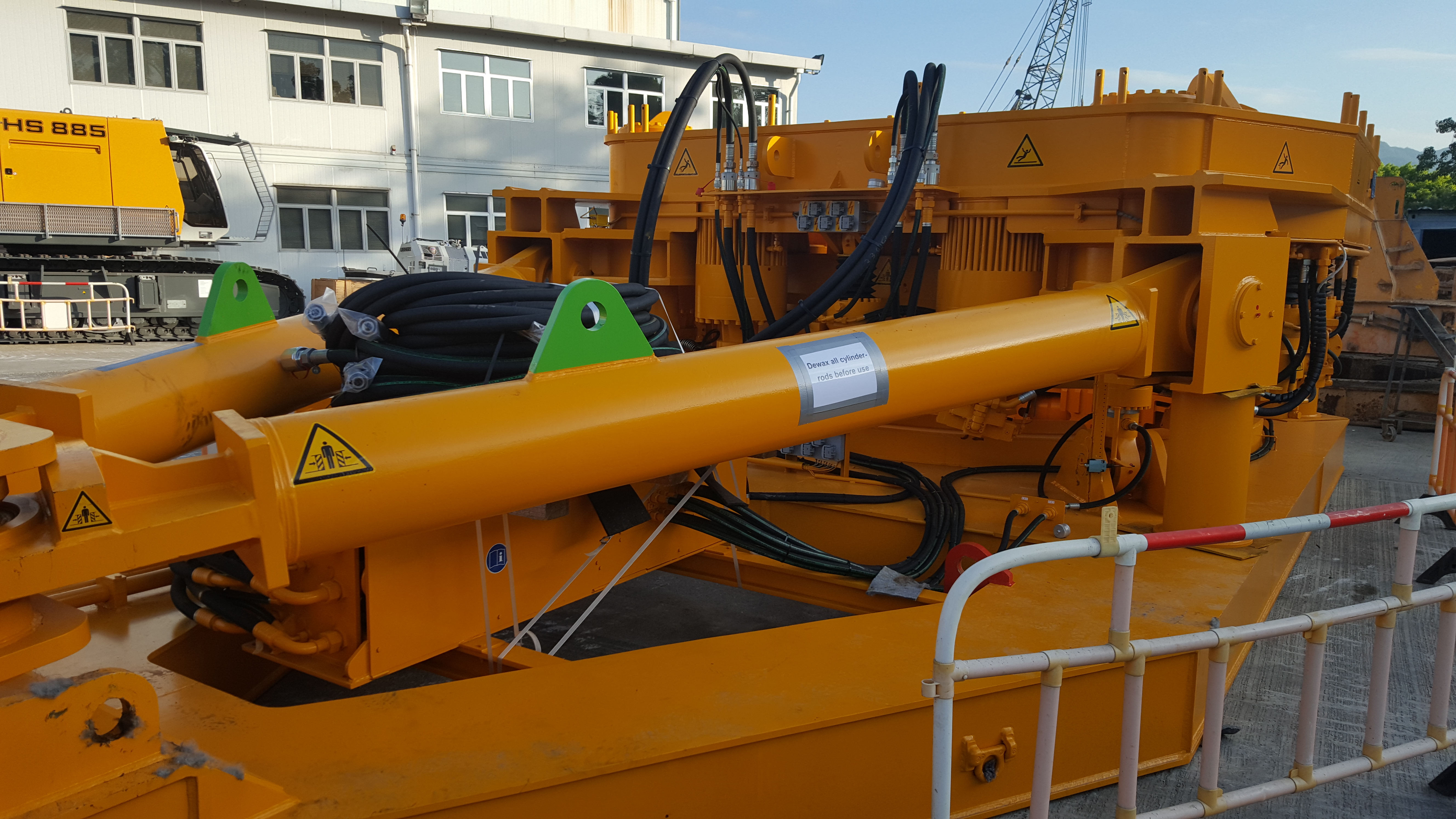

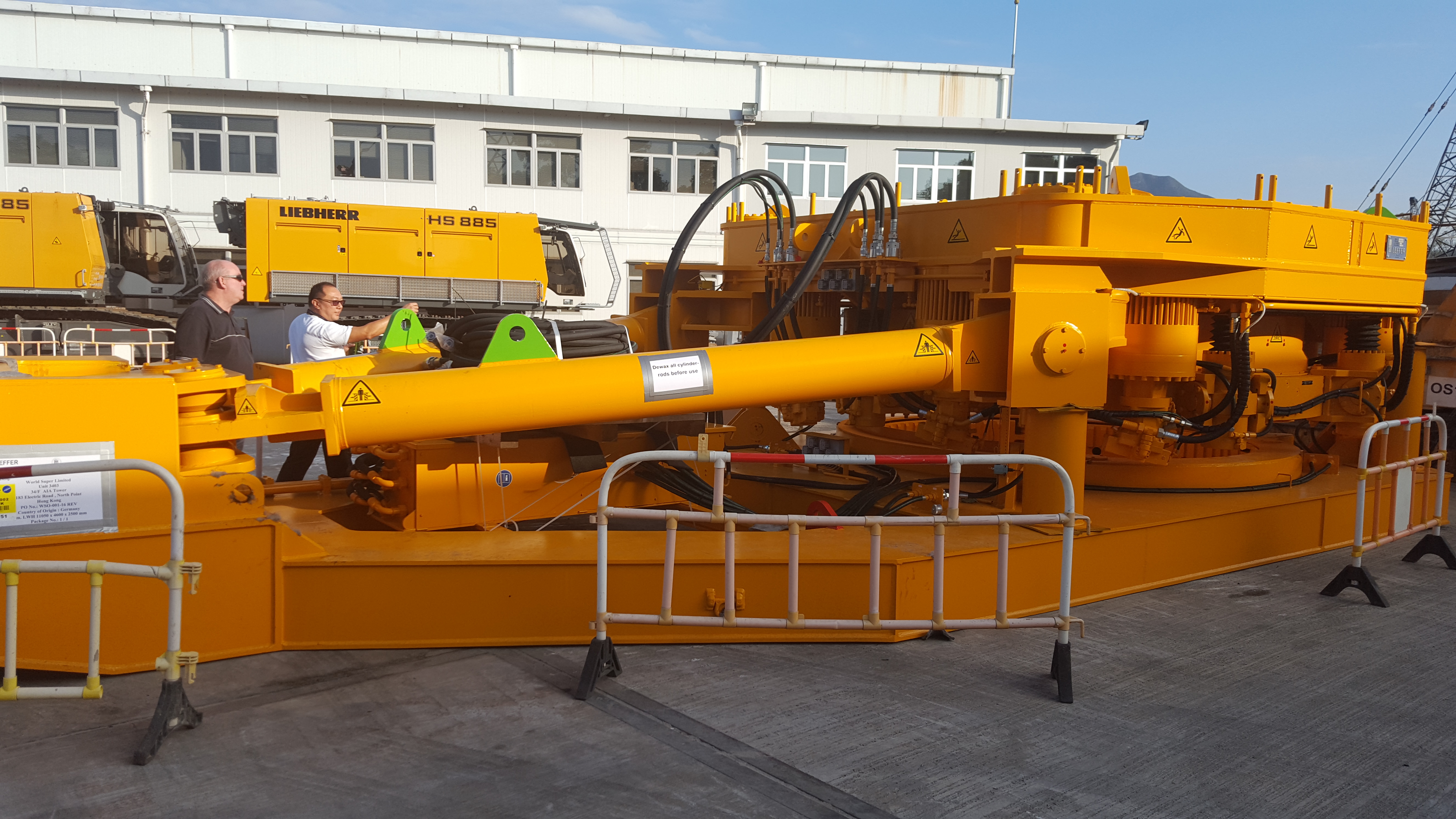

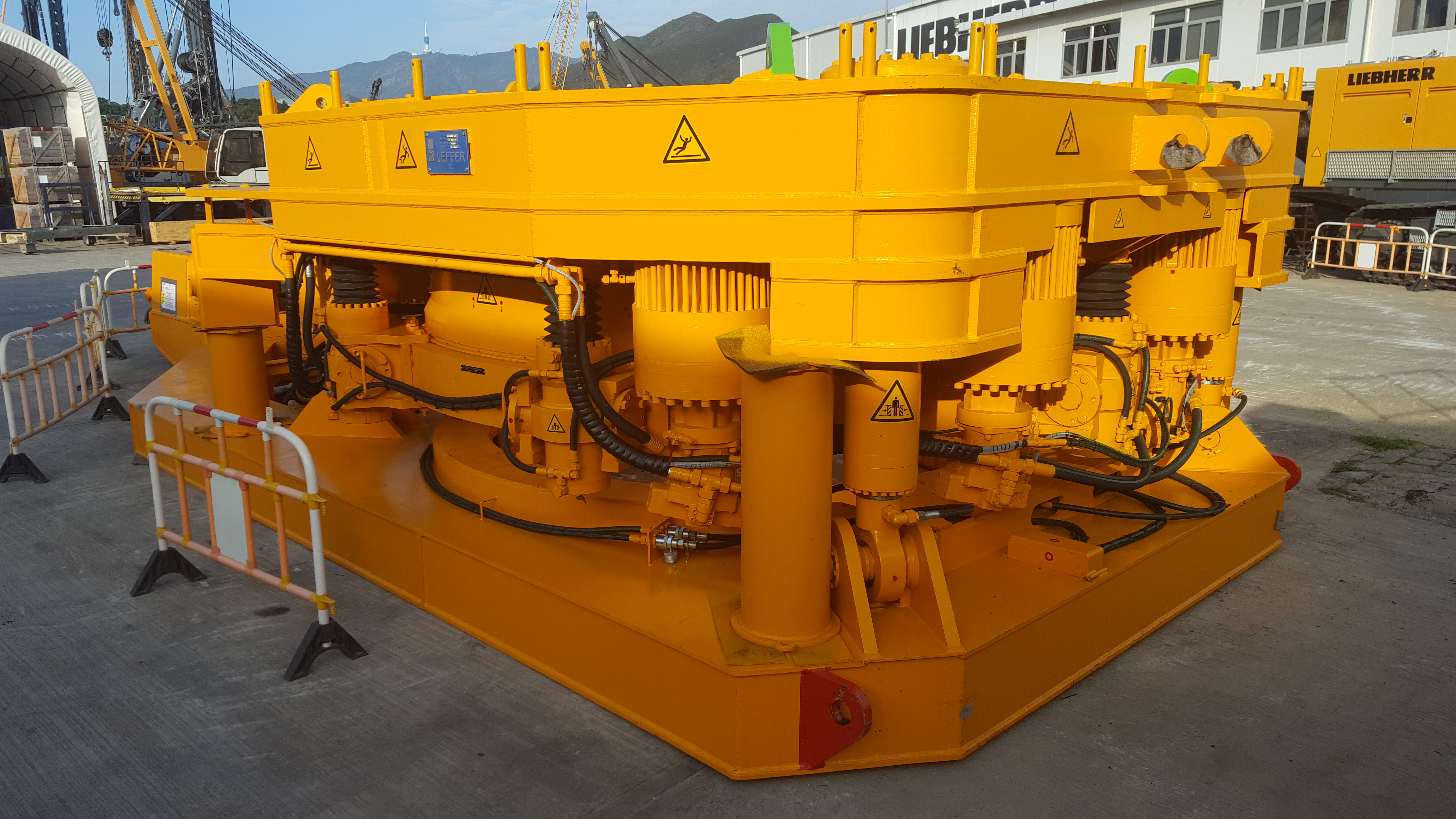

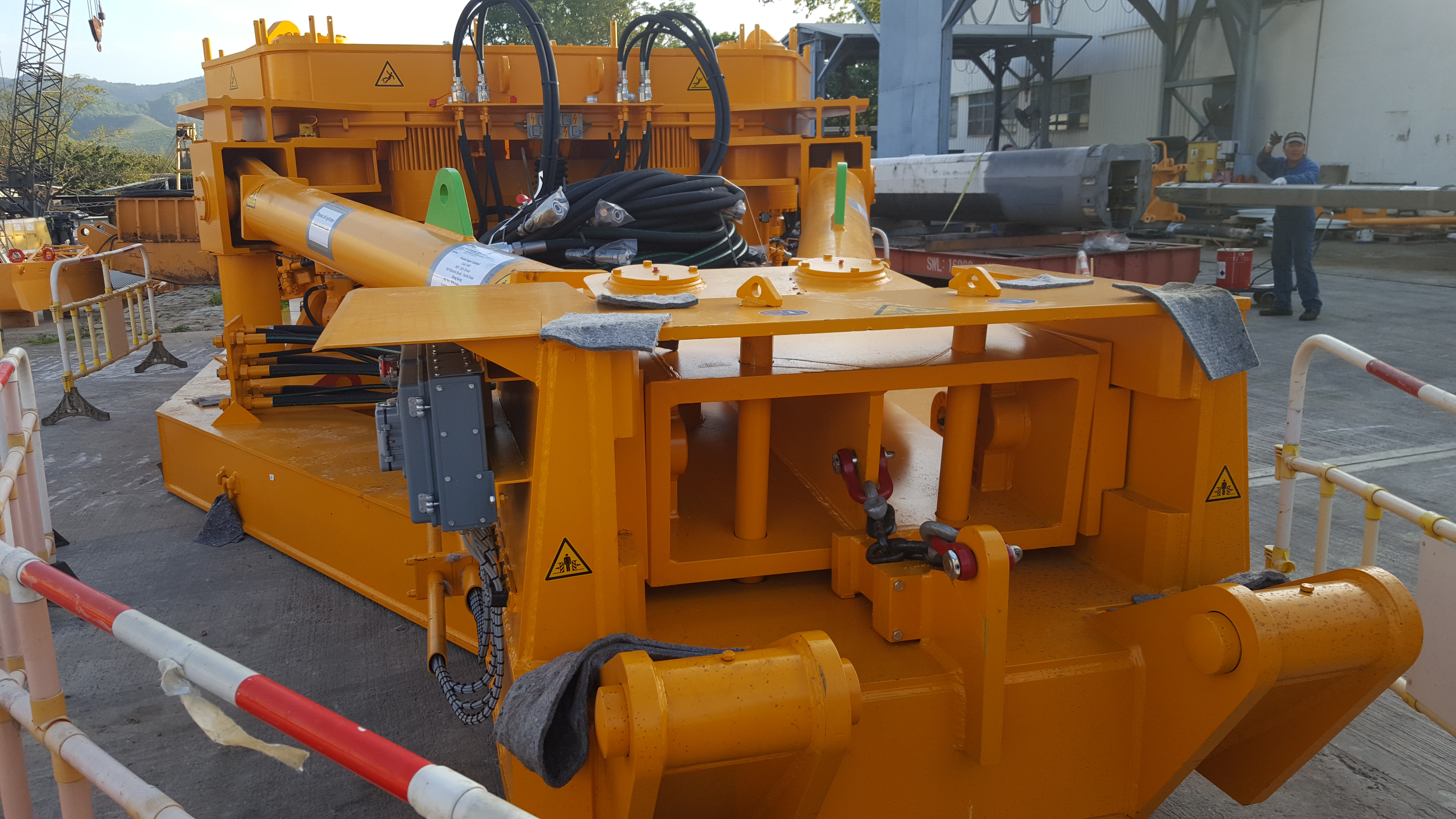

RCM 3000 T740 Hydraulic Casing Rotator
Specifications:
| Model | RCM 3000 T740 |
| Casing dia.: | 2000 - 3000 mm |
| Lifting stroke: | 600 mm |
| Lifting force: | 4560 kN |
| Rotating speed: | up to 1.5 rpm. |
| Max. torque : | 7400 kNm |
| Retaining force: | 1850 kN |
| Clamping force: | 23091 kN |
| Operating pressure: | 280 (300) bar |
| Length x width w.o. railing & ladder: | 11025x4850 mm |
| Height w.o. railing & ladder: | 2490 mm |
| Min. wall distance: | ~ 3000 mm |
| Weight: | 88000 kg* |
* including all necessary running materials.
